Siemens CAD NX 1953 Dimensions and Relations

Siemens CAD NX 1953 Dimensions and Relations

Show Details

Here are videos for NX Dimensions and relations - these are the few features that changed the most from NX 1890 series. This set of videos will help Engineering Students using NX to be up to date with the new software.

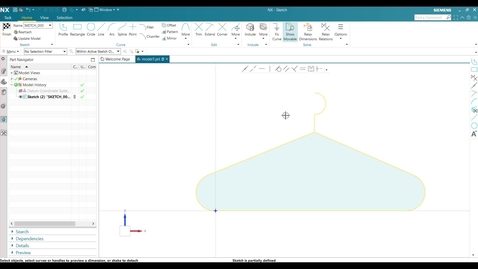

Expression Filler for NX 1953 1 of 5

duration 2 minutes 28 seconds

Expression Filler for NX 1953

From Parikshit Boregowda September 12th, 2021

64 plays 0

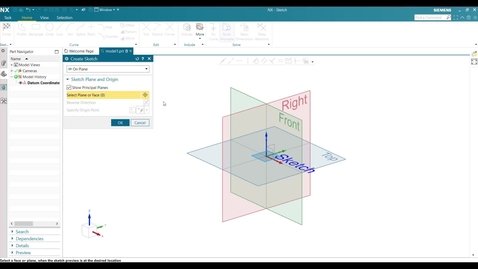

VIDEO4: NX 1953 relations continued 2 of 5

duration 5 minutes 57 seconds

VIDEO4: NX 1953 relations continued

From Parikshit Boregowda September 12th, 2021

38 plays 0

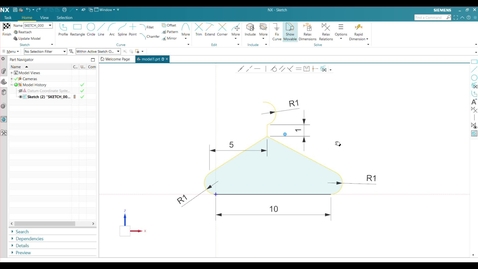

VIDEO3 : Applying Relations - Persistent vs Found… 3 of 5

duration 7 minutes 39 seconds

VIDEO3 : Applying Relations - Persistent vs Found relation

From Parikshit Boregowda September 12th, 2021

42 plays 0
Relations (previously constrains) are demonstrated in this video

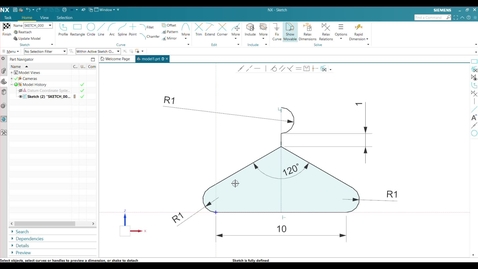

VIDEO2 : Adding Dimensions on NX 1953 4 of 5

duration 12 minutes 10 seconds

VIDEO2 : Adding Dimensions on NX 1953

From Parikshit Boregowda September 12th, 2021

54 plays 0
In this video we see how one can add dimensions on the new version of NX

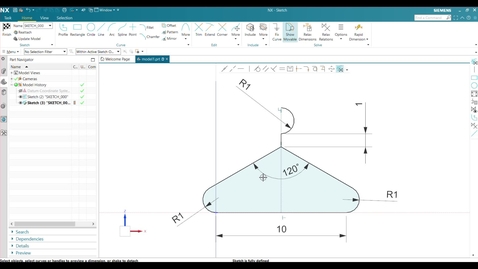

VIDEO1: Understanding Dimensions and relations on… 5 of 5

duration 14 minutes 12 seconds

VIDEO1: Understanding Dimensions and relations on NX (Version 1953 and above)

From Parikshit Boregowda September 12th, 2021

62 plays 0
This is an updated video of Dimensions and cosntraints (now called relations on NX)
